Hi

I thought I'd add a few wishes here

1. Editable (or, at least, readable) .psf file

2. In generator, allow to change the Unit of measurement for level
I'd like to be able to chose between, as an example, V, dBFS, %

3. A DDP for number of averaged samples
to be able to take the measure with automation without having to "guess" when it's averaged as wished

4. Allow Sum (average) of A+B channels as an input for FFT

5. Allow to select in ADC/DAC devices list and set up automatically all parameters (including calibration) from there

...

6. Allow auto-aligning, sizing of DDP boxes

7. Allow change of title font (font size) for DDP boxes

8. Add a button to display/hide Channel A or B from Spectrum analyzer display, without having to re-measure

...

Thank you for the suggestions.

1. See the previous reply.

2. Already exists
dBV, dBFS, or dBu unit display in parallel with the unit display of V is already provided at the bottom of the inner pair of vertical scrollbars on the signal generator panel. Click the displayed text to change the displayed unit.

3. A DDP named "Number of Frames" will be added.

4. will be provided.

5.[Setting]>[Restore to Factory Default] is already provided for this purpurse. For sound cards, currently only calibration settings for one sound card can be saved. Other ADC/DAC devices come calibrated and no additional calibration setting is required.

6.Already provided via:
(1) [Window]>[Cascade],[Tile Horizontally] or [Tile Vertically]
(2) [Setting]>[Display]>"Auto Layout After Loading a Panel Setting File">"Nil","Tile Horizontally", "Tile Vertically" . "Nil" means to keep the layout in PSF.

7. The font size in the window title bar can be configured through windows control panel.

8. Already provided.
Right click the oscilloscope/spectrum analyzer/spectrum 3D Plot window and select "Display Ch. A only", "Display Ch. B only", or "Display all". These commands actually use the "Off" option in "A Range" and "B Range" selection boxes of each graph window (see the respective view toolbar at the bottom of the screen) to do the task.

Hi
Thanks for your answer

VirtinsTech wrote:1. See the previous reply.

What about read only ?

VirtinsTech wrote:2. Already exists
dBV, dBFS, or dBu unit display in parallel with the unit display of V is already provided at the bottom of the inner pair of vertical scrollbars on the signal generator panel. Click the displayed text to change the displayed unit.

I know I can change the displayed unit.
My question is: Couldn't we have a flexible unit to enter the Output Amplitude value ?
Every time I want to set the signal generator to, say, -2.5dBFS, I have to translate that back in V.
If I could enter directly dBFS or dBu (or %), that would help me... and make the screen capture more readable.

VirtinsTech wrote:3. A DDP named "Number of Frames" will be added.
4. will be provided.

Thanks !

VirtinsTech wrote:5.[Setting]>[Restore to Factory Default] is already provided for this purpurse. For sound cards, currently only calibration settings for one sound card can be saved. Other ADC/DAC devices come calibrated and no additional calibration setting is required.

So my request should be labeled:
May we save several settings for one sound card, where calibration would vary, by just selecting it from the DAC or ADC device list ?

VirtinsTech wrote:6.Already provided via:
(1) [Window]>[Cascade],[Tile Horizontally] or [Tile Vertically]
(2) [Setting]>[Display]>"Auto Layout After Loading a Panel Setting File">"Nil","Tile Horizontally", "Tile Vertically" . "Nil" means to keep the layout in PSF.

OK, but the "Tile" functionality has a big drawback:

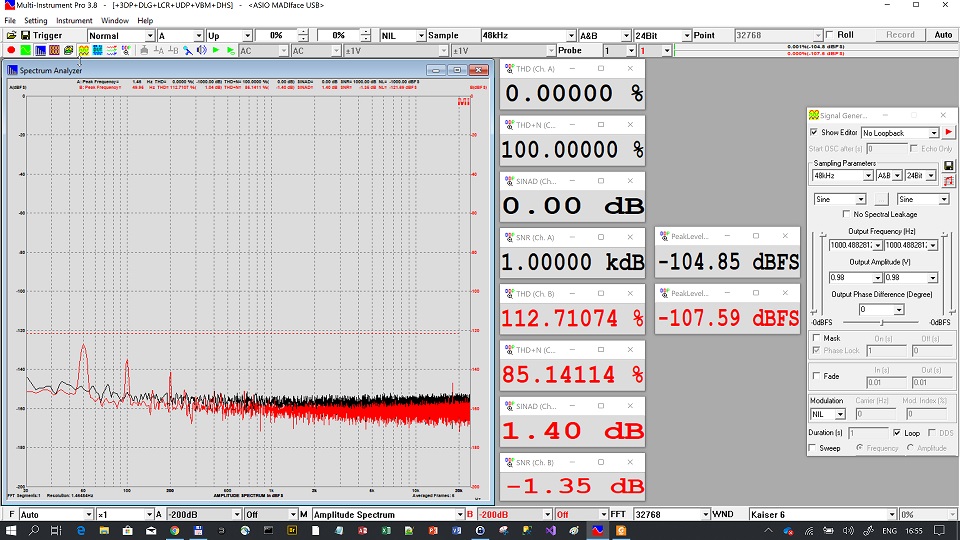

My panel settings look like this

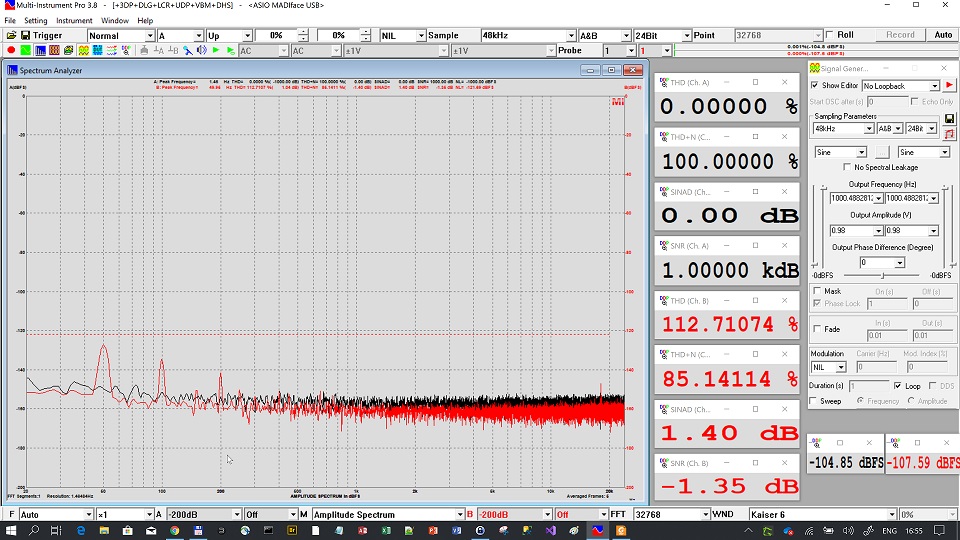

but after Tile, I get this

VirtinsTech wrote:7. The font size in the window title bar can be configured through windows control panel.

Indeed

VirtinsTech wrote:8. Already provided.
Right click the oscilloscope/spectrum analyzer/spectrum 3D Plot window and select "Display Ch. A only", "Display Ch. B only", or "Display all". These commands actually use the "Off" option in "A Range" and "B Range" selection boxes of each graph window (see the respective view toolbar at the bottom of the screen) to do the task.

Of course ! Sorry.

Another few:

9. Low crest factor Multi tone generator

10. TD+N on Multi tone

1.

What about read only ?

It will not be provided in the coming version V3.9.

2.

I know I can change the displayed unit. My question is: Couldn't we have a flexible unit to enter the Output Amplitude value ?
Every time I want to set the signal generator to, say, -2.5dBFS, I have to translate that back in V. If I could enter directly dBFS or dBu (or %), that would help me... and make the screen capture more readable.

Adjusting the innner pair of the vertical sliders there will update V and dBFS/dBu/dBV values simultaneously for the left and right channels respsectively. In this way you do not have to enter the dBFS/dBu/dBV values manually.

By the way, the dBFS values will be displayed with one decimal place in the coming version (currently it is displayed as an integer).

5.

May we save several settings for one sound card, where calibration would vary, by just selecting it from the DAC or ADC device list ?

This will be added in future release, but not in the coming one.

9. The crest factor of a multi-tone signal can be controlled by the intial phase of each tone. For manual configuration of a multi-tone signal, the user is responsible for entering the intial phases. For automatic configuration of a multi-tone signal, the software will generate random initial phases which will normally keep the crest factor minimal. In the coming version (V3.9), the automatic configuration algorithm will be improved in both speed and functionality. In pariticular, when "Align to FFT" is chosen, it is possible to further specify a frequency response profile: white noise, pink noise or arbitrary.

10. What is "TD+N" multitone?

All good news, thanks

Now the xxx$ question: When will the version 3.9 be released ?

About Multi tone TD+N, from ARTA software manual:
"TD+N is the percentage of the square root of the ratio of power of all noise bins to
the power of multitone. Intermodulation distortion in Square+sine mode is expressed as DIM
(%)"
Idea is to associate a figure to the Noise and distortion measured with a 32 1/3 octave Multitone signal, by removing all he 32 tones and measuring what's left.
Weighting that may be a valuable option.

Thanks for the info. TD+N will be included in V3.9. it will take one or two more months to release V3.9 due to the addition of many features...

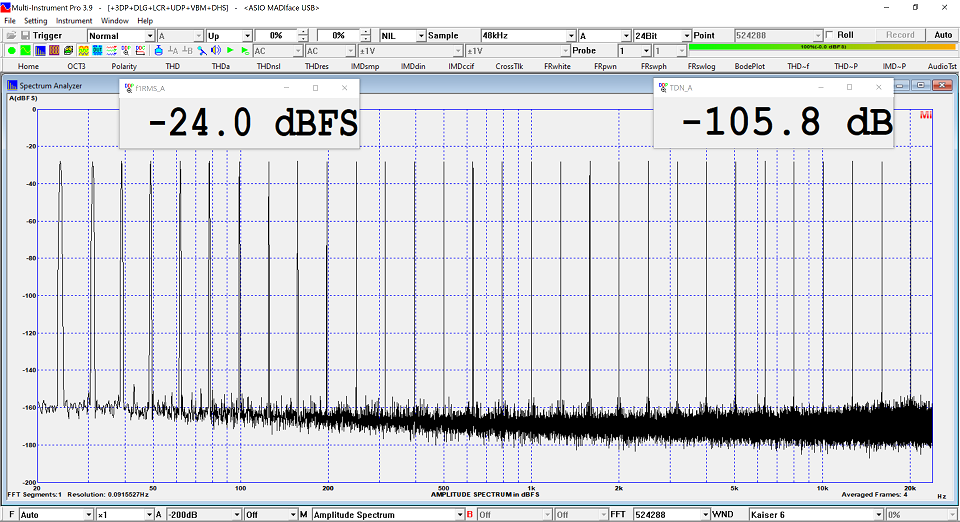

TD+N has been added in the newly released MI 3.9. Thanks for the suggestions.

VirtinsTech wrote:TD+N has been added in the newly released MI 3.9. Thanks for the suggestions.

Cool !
Thanks !!!
